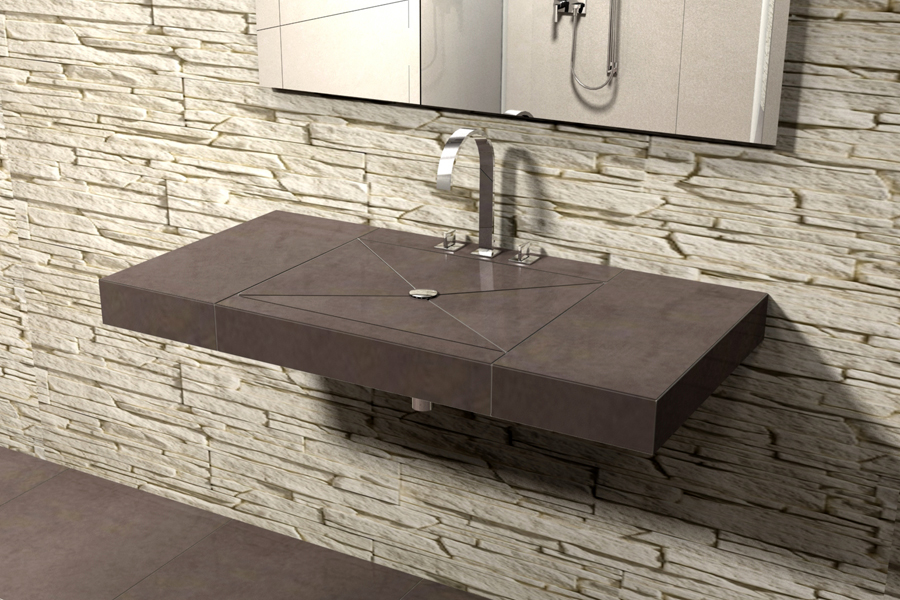

Washstand with channel drain LAVADO-FLOAT L

LAVADO-FLOAT L - tileable washstand with channel drain with hidden mounting in the wall for “floating“ design.

The floor channel drain is already integrated in the model with linear drainage. The reversible channel cover offers two design possibilities: One side has a brushed stainless steel surface, the other can be tiled to match the entire washstand.

By simply turning, the desired side faces upwards. A clickfit drain adaptor for the connection of the floor drain is included with the product.

LAVADO-FLOAT L
with sloping recess, with channel drain

The system components





Cover rail – Brushed stainless steel, tileable on the rear side

Tiling aid – Brushed stainless steel, for clean tiling

Height adapter – Separately provided, can be cut as required

Stainless steel brackets – 2 pieces – 450 mm long

Channel drain with click system – For the firm connection with separate drain support

Washstand panel – Hard foam support material, with sloping recess

Drain support – Clip-on technique, for drain pipe 1 ¼“

Mounting adhesive – 1 cartouche COL-MK 290 ml

Product specifications


Before printing a pdf file, please check if this is really necessary. Environmental protection concerns us all.

To view the PDF documents you will need either the Acrobat Reader or a PDF-Viewer, both available free of charge. Using these programs the PDF documents can be opened, viewed and printed.

Design example: single-, double- and arraywashstands

LAVADO-FLOAT offers bathroom planners and users the opportunity to design the washstand according to their own ideas due to the combination of large-sized tiles, natural stone, mosaic and plaster.
