Flush with the floor shower bases for the use on wooden sub-constructions – TUB-H

In buildings concrete floors are not always found in bathrooms. Due to national circumstances or for ecological planning reasons, it may occur that a wooden planking on a bearing structure serves as substrate for a shower base.

LUX ELEMENTS®-TUB-H
Standard-compliant sealing for highly stressed areas according to DIN 18534, Part 6



Bodengleiche Duschtassen für den Einsatz auf Holzkonstruktionen
no-img

TUB-HEQ
Hard-foam shower base element
drain in the corner

no-img

TUB-HMQ
Hard-foam shower base element
drain in the centre

no-img

TUB-HER
Hard-foam shower base element
drain in the corner

no-img

TUB-HMR
Hard-foam shower base element
drain in the centre

no-img

TUB-H BOL
Hard-foam shower base element
for the substitution of bath tubs

Appropriate floor drain system
(vertical and horizontal)

See also:
TUB-LINE H, Linear drainage

For this application purpose, LUX ELEMENTS offers the models TUB-HEQ/-HMQ (square, drain in the corner or in the centre) and TUB-HER/-HMR (rectangular, drain in the corner or in the centre) and TUB-H BOL (for the substitution of bath tubs). All models have a factory-sealed top surface and are equipped with a sealed-in floor drain frame.

With an installation height of 15/30 mm and a build-in gradient, these shower bases are particularly flat and can be easily integrated into existing wooden floors. A special reinforcement is attached to the underside of the shower bases for stability reasons.

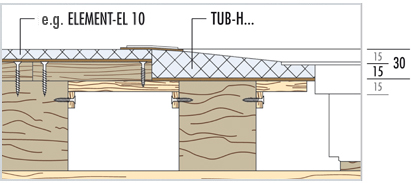

Installation height

Please note: Dimensions in mm. Measures without adhesive coating and tiles.

For the use on wooden sub-constructions

The drain technology, which is easy to mount due to a click system, can be easily installed in the cavity between two load-bearing planks.

We will be pleased to compile the appropriate mounting accessories for you. Please contact us!

Note:
A planning expert is to be consulted when intervening in components with load-bearing function. Furthermore, national guidelines and generally recognised codes of practice must be observed.

Note:
The design of descending gradients and directions belongs to planning services.

Mounting accessories (KITs)

Complete set mounting accessories on offer for all sizes of flush with the floor shower bases.

Product specifications

Detailed product information and dimensions can be found here
