TUB-LINE 70 R1 1200/900 ...
TUB-LINE 70 R4 1200/900 ...
R4: 4-sided gradient
There are two gradient options to choose from:
- The 4-sided gradient runs from the outer edges to the drain, so no special cutting of the tiles above the shower base is necessary.
- As an alternative, the single-sided gradient to the drain can be chosen
Drain performance [l/s] in accordance with DIN EN 1253
- vertical (
TUB-LINE-DRAS): 1,7 l/s
- horizontal (TUB-LINE-DRAW): 1,3 l/s

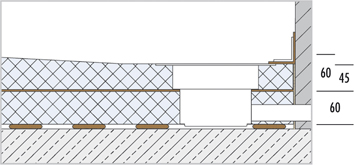

Covering thicknesses and installation heights
TUB-LINE 70 R1 + R4
Covering thicknesses
Upper layer thickness (tile + adhesive) for
- the shower base: minimum 5 mm, maximum 15 mm
- the tileable maintenance opening = 20 mm
- the tileable stainless steel channel cover = 12 mm
- Installation of horizontal drain with substrate element:
- The same installation height applies to the installation of the vertical drain with substrate element.
- The overall height when installing the vertical drain without a substrate element is reduced by the height of the substrate element (= 60 mm).
Please note: The design of descending gradients and directions belongs to planning services.
For further details, please see technicaldata sheet TUB-LINE.Please note: Dimensions in mm. Measures without adhesive coating and tiles.

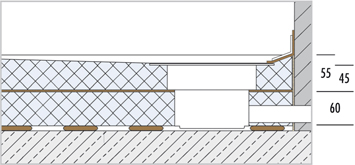

TUB-LINE 70 R1 + R4... S
S
= „slimmer“ variant (S)
Covering thicknesses
Upper layer thickness (tile + adhesive) for
- the shower base: minimum 14 mm, maximum 24 mm
- the tileable maintenance opening = 20 mm
- the tileable stainless steel channel cover = 12 mm
- Installation of horizontal drain with substrate element:
- The same installation height applies to the installation of the vertical drain with substrate element.
- The overall height when installing the vertical drain without a substrate element is reduced by the height of the substrate element (= 60 mm).
Please note: The design of descending gradients and directions belongs to planning services.
For further details, please see technicaldata sheet TUB-LINE.Please note: Dimensions in mm. Measures without adhesive coating and tiles.
70 x 750 mm
| Product specifications | TUB-LINE 70, hard foam shower base elements, square or rectangular, with integrated and sealed floor channel drain 70 x 750 mm on short side, cover rail and frame made from stainless steel, cover rail in brushed stainless steel or tileable on the rear side, maintenance opening tileable with locking system, frame/rail adjustable by 10 mm in height. | |||
| Article- number |
Article- name |
Article- description |
Nominal formats/ dimensions |
Unit |
| LTUBE9012 | TUB-LINE 70 R4 1000/900 |
Hard foam shower base element, rectangular, with floor channel drain, with 4-sided gradient, including substrate element, standard format, for coverings in thicknesses of 5–15 mm | 1000 x 900 x 45/55 mm substrate element 1000 x 900 x 60 mm |
|
| LTUBE9013 | TUB-LINE 70 R1 1000/900 |
Hard foam shower base element, rectangular, with floor channel drain, with descending gradient on one side, including substrate element, standard format, for coverings in thicknesses of 5–15 mm | 1000 x 900 x 45/60 mm substrate element 1000 x 900 x 60 mm |
Set |
| LTUBE9112 | TUB-LINE 70 R4 1000/900 S |
Hard foam shower base element, rectangular, with floor channel drain, with 4-sided gradient, including substrate element, standard format, for coverings in thicknesses of 14–24 mm | 1000 x 900 x 35/45 mm substrate element 1000 x 900 x 60 mm |
Set |
| LTUBE9113 | TUB-LINE 70 R1 1000/900 S |
Hard foam shower base element, rectangular, with floor channel drain, with descending gradient on one side, including substrate element, standard format, for coverings in thicknesses of 14–24 mm | 1000 x 900 x 35/50 mm substrate element 1000 x 900 x 60 mm |
Set |
| LTUBE9003 | TUB-LINE 70 R4 1200/900 |
Hard foam shower base element, rectangular, with floor channel drain, with 4-sided gradient, including substrate element, standard format, for coverings in thicknesses of 5–15 mm | 1200 x 900 x 45/55 mm substrate element 1200 x 900 x 60 mm |
Set |
| LTUBE9005 | TUB-LINE 70 R1 1200/900 |
Hard foam shower base element, rectangular, with floor channel drain, with descending gradient on one side, including substrate element, standard format, for coverings in thicknesses of 5–15 mm | 1200–900 x 45/60 mm substrate element 1200 x 900 x 60 mm |
Set |
| LTUBE9103 | TUB-LINE 70 R4 1200/900 S |
Hard foam shower base element, rectangular, with floor channel drain, with 4-sided gradient, including substrate element, standard format, for coverings in thicknesses of 14–24 mm | 1200 x 900 x 35/45 mm substrate element 1200 x 900 x 60 mm |
Set |
| LTUBE9105 | TUB-LINE 70 R1 1200/900 S |
Hard foam shower base element, rectangular, with floor channel drain, with descending gradient on one side, including substrate element, standard format, for coverings in thicknesses of 14–24 mm | 1200–900 x 35/50 mm substrate element 1200–900 x 60 mm |
Set |
| LTUBE9016 | TUB-LINE 70 R4 1000–1200/900–1000* |
Hard foam shower base element, rectangular, with floor channel drain, with 4-sided gradient, including substrate element, made to measure, for coverings in thicknesses of 5–15 mm | 1000–1200 x 900–1000 x 45/55 mm substrate element 1000–1200 x 900–1000 x 60 mm |
Set |
| LTUBE9017 | TUB-LINE 70 R1 1000–1200/870–1000* |
Hard foam shower base element, rectangular, with floor channel drain, with descending gradient on one side, including substrate element, made to measure, for coverings in thicknesses of 5–15 mm | 1000–1200 x 870–1000 x 45/60 mm substrate element 1000–1200 x 870–1000 x 60 mm |
Set |
| LTUBE9116 | TUB-LINE 70 R4 1000–1200/900–1000 S* |
Hard foam shower base element, rectangular, with floor channel drain, with 4-sided gradient, including substrate element, made to measure, for coverings in thicknesses of 14–24 mm | 1000–1200 x 900–1000 x 35/45 mm substrate element 1000–1200 x 900–1000 x 60 mm |
Set |
| LTUBE9117 | TUB-LINE 70 R1 1000–1200/870–1000 S* |
Hard foam shower base element, rectangular, with floor channel drain, with descending gradient on one side, including substrate element, made to measure, for coverings in thicknesses of 14–24 mm | 870–1000 x 870-1000 x 35/50 mm substrate element 1000–1200 x 870–1000 x 60 mm |
Set |
70 x 850 mm
| Product specifications | TUB-LINE 70, hard foam shower base elements, square or rectangular, with integrated and sealed floor channel drain 70 x 850 mm on short side, cover rail and frame made from stainless steel, cover rail in brushed stainless steel or tileable on the rear side, maintenance opening tileable with locking system, frame/rail adjustable by 10 mm in height. | |||
| Article- number |
Article- name |
Article- description |
Nominal formats/ dimensions |
Unit |
| LTUBE9020 | TUB-LINE 70 R4 1200/1000 |
Hard foam shower base element, rectangular, with floor channel drain, with 4-sided gradient, including substrate element, standard format, for coverings in thicknesses of 5–15 mm | 1200 x 1000 x 45/55 mm substrate elementt 1200 x 1000 x 60 mm |
|
| LTUBE9021 | TUB-LINE 70 R1 1200/1000 |
Hard foam shower base element, rectangular, with floor channel drain, with descending gradient on one side, including substrate element, standard format, for coverings in thicknesses of 5–15 mm | 1200 x 1000 x 45/60 mm substrate element 1200 x 1000 x 60 mm |
Set |
| LTUBE9120 | TUB-LINE 70 R4 1200/1000 S |
Hard foam shower base element, rectangular, with floor channel drain, with 4-sided gradient, including substrate element, standard format, for coverings in thicknesses of 14–24 mm | 1200 x 1000 x 35/45 mm substrate element 1200 x 1000 x 60 mm |
Set |
| LTUBE9121 | TUB-LINE 70 R1 1200/1000 S |
Hard foam shower base element, rectangular, with floor channel drain, with descending gradient on one side, including substrate element, standard format, for coverings in thicknesses of 14–24 mm | 1200 x 1000 x 35/50 mm substrate element 1200 x 1000 x 60 mm |
Set |
| LTUBE9024 | TUB-LINE 70 R4 1000–1200/1000–1100 |
Hard foam shower base element, rectangular, with floor channel drain, with 4-sided gradient, including substrate element, made to measure, for coverings in thicknesses of 5–15 mm | 1000–1200 x 1000–1100 x 45/55 mm substrate element 1000–1200 x 1000–1100 x 60 mm |
Set |
| LTUBE9025 | TUB-LINE 70 R1 1000–1200/970–1100 |
Hard foam shower base element, rectangular, with floor channel drain, with descending gradient on one side, including substrate element, made to measure, for coverings in thicknesses of 5–15 mm | 1000–1200 x 970–1100 x 45/60 mm substrate element 1000–1200 x 970–1100 x 60 mm |
Set |
| LTUBE9124 | TUB-LINE 70 R4 1000–1200/1000–1100 S |
Hard foam shower base element, rectangular, with floor channel drain, with 4-sided gradient, including substrate element, made to measure, for coverings in thicknesses of 14–24 mm | 1000–1200 x 1000–1100 x 35/45 mm substrate element 1000–1200 x 1000–1100 x 60 mm |
Set |
| LTUBE9125 | TUB-LINE 70 R1 1000–1200/970–1100 S |
Hard foam shower base element, rectangular, with floor channel drain, with descending gradient on one side, including substrate element, made to measure, for coverings in thicknesses of 14–24 mm | 1000–1200 x 970–1100 x 35/50 mm substrate element 1000–1200 x 970–1100 x 60 mm |
Set |
