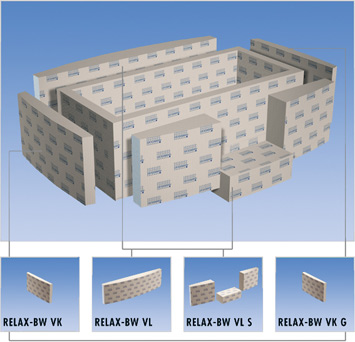

The cladding for RELAX-BW is
available optionally with or without
a step, and by suitably combining
the parts, it can be adapted to
every possible
installation situation.
Stepped platform of solid material, suitable for RELAX-BW. (max. 200 mm high, 300 mm deep).
Product specifications
| Article- number |
Article- name |
Article- description |
Nominal formats/ dimensions |
Unit |
| LREL3201 | RELAX-BW VL 1800-2000 | Cladding, longitudinal for RELAX-BW, rounded | Width 1800 – 2000 mm, Height 600 mm, Thickness 70/150 mm | piece |
| LREL3202 | RELAX-BW VL 2000-2200 | Cladding, longitudinal for RELAX-BW, rounded | Width 2000 – 2200 mm, Height 600 mm, Thickness 70/150 mm | piece |
| LREL3203 | RELAX-BW VL S 1800-2000 | Cladding, long side RELAX-BW, rounded, construction kit, in two parts with step |
Front parts: Length 600 mm, Height 600 mm, Thickness 70/140 mm, Step: width 600–800 mm, Width 200 mm, Tiefe 300 mm |
Set |
| LREL3204 | RELAX-BW VL S 2000-2200 | Cladding, long side RELAX-BW, rounded, construction kit, in two parts with step |
Front parts: Length 600 mm, Width 600 mm, Thickness 70/140 mm, Step: width 800–1000 mm, Width 200 mm, Thickness 300 mm |
Set |
| LREL3301 | RELAX-BW VK | Cladding head side RELAX-BW, rounded | Width 938 mm, Height 600 mm, Thickness 100 mm |
piece |
| LREL3302 | RELAX-BW VK G | Cladding head side RELAX-BW, rounded, straight edge at one end |
Width 869 mm, Height 600 mm, Thickness 100 mm |
piece |
| LREL3401 | RELAX-KST | Step pedestal for bath tub construction kit | max. 200 mm height, 300 mm thickness |
running meter |
| LREL3901 | RELAX-KIT BW | Mounting accessories and sealing set for RELAX-BW, 23,5 kg DRY-ASK, 10 m DRY-DB, 4 pieces DRY-DBIE, 1 piece COL-MD, 10 m ARM-100 SK, 25 kg COL-AK |
Set |
