The system TUB-BOL... is the optimum solution for such applications. No matter what the substrate, LUX ELEMENTS has the right product for any application.
We will be pleased to compile the appropriate mounting accessories for you.
Please contact us!
As an option, you can add to all systems matching
partition walls (RELAX-TW) and/or
seats made of hard foam support elements
(e.g. MODUL-BA-SOLO).
Flush with the floor shower bases for the substitution
of bath tubs on mineral substrates
TUB-BOL 1800/750 and TUB-BOL 1800/900 – Factory-sealed hard foam shower base element with integrated and sealed floor drain support frame, slope area from 750/900 x 1200 mm, can be cut to length, minimum of 750/900 x 1200 mm.
TUB-UBOL 1800/750 and TUB UBOL 1800/900 – suitable substrate elements for TUB-BOL 1800/750 and TUB-BOL 1800/900.
Please note: Dimensions in mm. Measures without adhesive coating and tiles.
Shower bases for the substitution of bathtubs
on wooden substructures.
(also suitable for all mineral substrates)

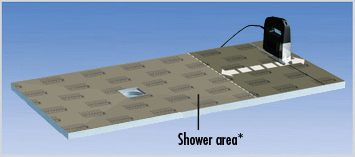

Note: the fittings are to be located in the shower area.
TUB-BOL 750/1850 H,M and TUB-BOL 900/1850 H, M
Construction kits consisting of a hard foam shower base
element with integrated and sealed floor drain mounting
frame, substrate element and sloped extention element.
- Advantage: Sufficient height for drain elements and
pipes
Please note: Dimensions in mm. Measures without adhesive coating and tiles.
TUB-BOL 750/1850 S and TUB-BOL 900/1850 S
Construction kits consisting of a hard foam shower base element with integrated and sealed floor drain mounting frame and sloped extention element.
- Advantage: Low installation height
Please note: Dimensions in mm. Measures without adhesive coating and tiles.
Product overview
TUB-BOL
TUB-BOL 1800/750
TUB-BOL 1800/900
TUB-UBOL
TUB-UBOL 1800/750
TUB-UBOL 1800/900
TUB-BOL ... H
TUB-BOL ... M
TUB-BOL ... S
The design of descending gradients and directions belongs to planning services. Special designs are possible apart from the descending gradients stated here.
Appropriate floor drain support for all shower base elements:
TUB-BAS
(vertical, for 160 mm core drill hole)
TUB-BAS
(vertical, for 100 mm core drill hole)
TUB-BAW
(horizontal)
Product specifications
| Artikel- nummer |
Artikel- betegnelse |
Artikelbeskrivelse | Bredde/mål/ Dimensioner |
Enhed |
| LTUBE18016 | TUB-BOL 1800/750 | Hard foam shower base element, with integrated and sealed floor drain support frame 135 x 135 mm, can be cut to length to minimum 750 x 1200 mm, slope area from 750 x 1200 mm, drain in the slope area in the centre | 1800 x 750 x 30/45 mm | piece |
| LTUBE18017 | TUB-UBOL 1800/750 | Substrate element for TUB-BOL 1800/750 | 1800 x 750 x 55 mm | piece |
| LTUBE18018 | TUB-BOL 1800/900 | Hard foam shower base element, with integrated and sealed floor drain support frame 135 x 135 mm, can be cut to length to minimum 900 x 1200 mm, slope area from 900 x 1200 mm, drain in the slope area in the centre | 1800 x 900 x 30/45 mm | piece |
| LTUBE18019 | TUB-UBOL 1800/900 | Substrate element for TUB-BOL 1800/900 | 1800 x 900 x 55 mm | piece |
| LTUBE18020 | TUB-BOL 900/1850 H | Building kit consisting of a hard foam shower base element, with integrated and sealed floor drain fitting frame 135 x 135 mm, substrate element and sealed extension element | Shower base element 900 x 900 x 30/45 mm, substrate element 950 x 900 x100 mm, extension element 950 x 900 x 145/155 mm |
set |
| LTUBE18021 | TUB-BOL 900/1850 M | Building kit consisting of a hard foam shower base element, with integrated and sealed floor drain fitting frame 135 x 135 mm, substrate element and sealed extension element | Shower base element 900 x 900 x 30/45 mm, substrate element 950 x 900 x 55 mm, extension element 950 x 900 x 100/110 mm |
set |
| LTUBE18022 | TUB-BOL 900/1850 S | Building kit consisting of a hard foam shower base element, with integrated and sealed floor drain fitting frame 135 x 135 mm and sealed extension element | Shower base element 900 x 900 x 30/45 mm, extension element 950 x 900 x 45/55 mm |
set |
| LTUBE18023 | TUB-BOL 750/1850 H | Building kit consisting of a hard foam shower base element, with integrated and sealed floor drain fitting frame 135 x 135 mm, substrate element and sealed extension element | Shower base element 900 x 750 x 30/45 mm, substrate element 950 x 750 x100 mm, extension element 950 x 750 x 145/155 mm |
set |
| LTUBE18024 | TUB-BOL 750/1850 M | Building kit consisting of a hard foam shower base element, with integrated and sealed floor drain fitting frame 135 x 135 mm, substrate element and sealed extension element | Shower base element 900 x 750 x 30/45 mm, substrate element 950 x 750 x 55 mm, extension element 950 x 750 x 100/110 mm |
set |
| LTUBE18025 | TUB-BOL 750/1850 S | Building kit consisting of a hard foam shower base element, with integrated and sealed floor drain fitting frame 135 x 135 mm and sealed extension element | Shower base element 900 x 750 x 30/45 mm, extension element 950 x 750 x 45/55 mm |
set |
- Point drainage
-
LUX ELEMENTS®- TUB
The flush with the floor shower base for one-point drainage
Flush with the floor shower bases for the use on wooden sub-constructions
The design variants and dimensions
Shower bases as a substitute for bath tubs
LUX ELEMENTS®- TUB-BA
- Linear drainage
-
LUX ELEMENTS®- TUB-LINE
Flush with the floor shower bases for linear drainage in overview
Channel support and gradient elements for linear drainage in overview
LUX ELEMENTS®- TUB-LINE 70
Shower base element with sealed floor channel drain
LUX ELEMENTS®- TUB-LINE BASE
Hard foam shower base element with sealed floor channel drain
LUX ELEMENTS®- TUB-LINE 40
Shower base element with sealed floor channel drain
LUX ELEMENTS®- TUB-LINE ... RT/GK
Channel support TUB-LINE ... RT
- Building kits
-
LUX ELEMENTS®- RELAX
- Floor drain & accessories
-
LUX ELEMENTS®- TUB-BA ...
Floor drain systems (horizontal, DN 50)
Floor drain systems (vertical, DN 40 / DN 50) for 100 mm core drill hole
Floor drain systems (vertical, DN 50) for 160 mm core drill hole
LUX ELEMENTS®- TUB-BAZ ...
Accessories for the floor drain systems
LUX ELEMENTS®- TUB-LINE DRA...
Drain connection for linear drainage
LUX ELEMENTS®- TUB-TSM
LUX ELEMENTS®- TUB-KIT
- Individual, special manufacture
-
LUX ELEMENTS manufactures individual customised and special products for the TUB product group. These include dimensions, thicknesses, shapes etc. that deviate from the standard program.
