RELAX-CAB-E-WA
Wall construction including roof and panel

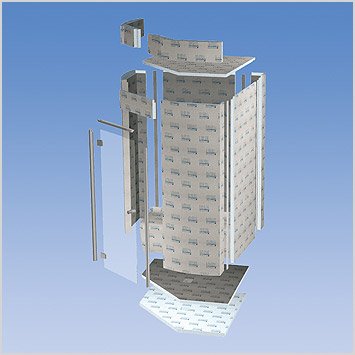

Corner installation, pentagonal, walls rounded on the outside, max. wall height 2500 mm, wall thickness 50/100 mm, roof 40 mm thick, panel 250 mm high, 50/100 mm thick.
RELAX-CAB-E-BO
Floor element with integrated and sealed floor drain support frame 135 x 135 mm, 30/45 thick.
(The design of descending gradients and directions is part of the planning services. Special designs up to a maximum thickness of 65 mm are possible apart from the descending gradients stated here.)
RELAX-CAB-E-UBO
Substrate elements 55 mm thick.
For drain pipework see
LUX ELEMENTS®- TUB - Floor drain systems
Accessories: Aluminium door frame, flat profile with locking
mechanism and with hinges for glass doors
Choice of two seating arrangements :
- Step bench seat or
- rounded bench seat (possible for floor dimension from 1250 mm x 1250 mm).
External wall & floor dimension
External wall
dimension |
Site B
|
|||
1000 mm
|
1250 mm
|
1500 mm
|
||
| Site A | 1000 mm
|
+
|
||
1250 mm
|
+
|
|||
1500 mm
|
+
|
|||
- Kit for cabins
-
LUX ELEMENTS®- RELAX-CAB-E
Cabine
- Relaxation loungers
-
LUX ELEMENTS®- RELAX-RL
- Bath tub construction kit
-
LUX ELEMENTS®- RELAX-BW
- Partition wall element
-
LUX ELEMENTS®- RELAX-TW
- Kits for shower
-
LUX ELEMENTS®- RELAX
LUX ELEMENTS®- RELAX-RD
LUX ELEMENTS®- RELAX-SD
LUX ELEMENTS®- RELAX-RSE
The space-saving corner shower
LUX ELEMENTS®- RELAX-JUNIOR
- Individual, special manufacture
-
LUX ELEMENTS manufactures individual customised and special products for the RELAX product group. These include dimensions, thicknesses, shapes etc. that deviate from the standard program.
